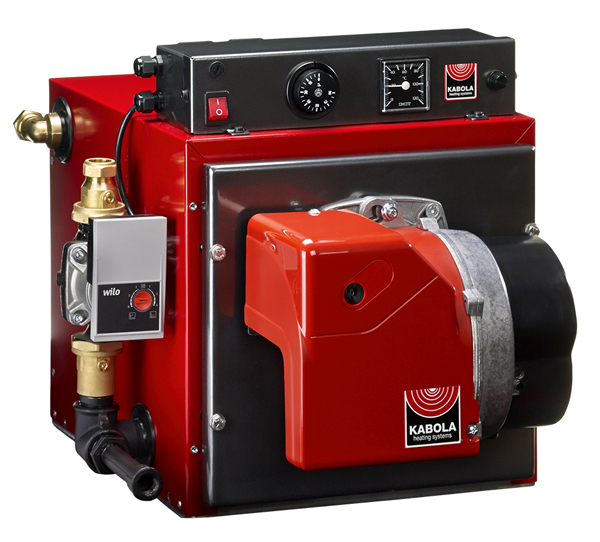

Kabola HR-E Series
BTU 34,000- 68,000
The HR-E Series brings in one economical package high efficiency, compact design, reliability and quiet operation on board today’s finest vessels.
| UNIT | HR-E 300 | HR-E 400 | HR-E 500 | |
|---|---|---|---|---|
| CAPACITY BTU | BTU | 34,100 | 47,700 | 68,200 |
| EFFICIENCY | % | 90 | 90 | 90 |
| EXHAUST TEMP MAX | F | 446 | 446 | 446 |
| EXHAUST OUTLET DIAMETER | Inch | 2 3/8 | 3 3/16 | 3 3/16 |
| POWER DRAW | W | 230 | 230 | 230 |
| WEIGHT | LBS | 132 | 154 | 179 |
| FUEL | #2 DIESEL | #2 DIESEL | #2 DIESEL |
| HR-E 300 | HR-E 400 | HR-E 500 | |
|---|---|---|---|
| A | 15 | 18 1/8 | 19 1/2 |
| B | 12 1/5 | 12 1/5 | 12 1/5 |
| C | 14 | 14 5/8 | 14 5/16 |
| D | 11 11/16 | 11 11/16 | 11 11/16 |
| E | 14 3/16 | 14 5/8 | 16 3/4 |
| F | 13 9/16 | 13 9/16 | 13 9/16 |
| G | 5 1/2 | 5 1/2 | 5 1/2 |
| H | 2 15/16 | 2 15/16 | 2 15/16 |
| I | – | – | – |
