REAL 8000 Series

REAL8424-LP

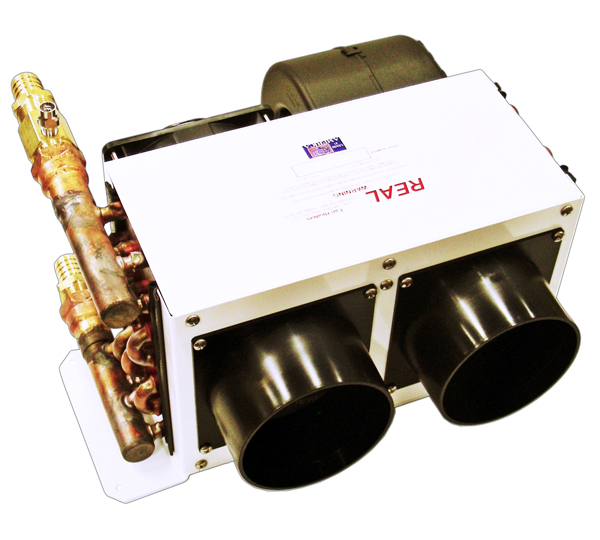

REAL 8424-LP
The REAL 8424-LP 9,700 / 14,000 Btu Low Profile Marine Hydronic Combo Defroster / Heater provides a 4-inch outlet on the low 9,700 Btu output side for cabin heat and a 4-inch outlet on the high 14,000 Btu output side for defrost.

This kit includes 12 feet of 4-inch duct, two 4-inch grilles with clamps, and a three speed fan switch.

Dimensions: Height* 6-11/16″ x Width 13-3/8″ x Depth 11-11/16″
Amp Draw: 4.5 amp (high), .36 (low output side)
Max. BTU: 14,000 (high output side), 9,700 (low output side)
Airflow: 153 cfm (high output side), 103 cfm (low output side)
Shipping Weight: 14 lbs
*Bleeder fitting adds 1/2″ to height.

Available in 12 or 24 Volts. Comes with a 3-speed switch. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.

REAL845X-LP

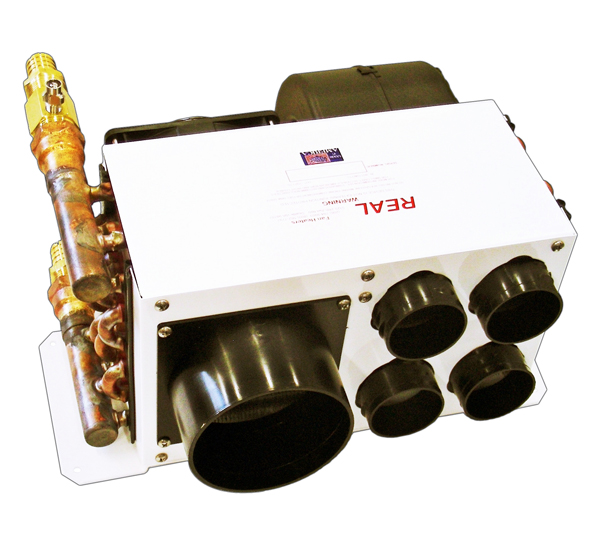

REAL 845X-LP
The REAL 845X-LP 9,700 / 14,000 Btu Low Profile Marine Hydronic Combo Defroster / Heater provides a 4-inch outlet on the low 9,700 Btu output side for cabin heat and four 2-inch outlets on the high 14,000 Btu output side for defrost.

This kit includes six feet of 4-inch duct, 25 feet of 2-inch duct, one 4-inch grille and four 2-inch grilles with clamps, and a three speed fan switch.
Dimensions: Height* 6-11/16″ x Width 13-3/8″ x Depth 11-11/16″
Amp Draw: 4.5 amp (high), .36 (low output side)
Max. BTU: 14,000 (high output side), 9,700 (low output side)
Airflow: 153 cfm (high output side), 103 cfm (low output side)
Shipping Weight: 14 lbs
*Bleeder fitting adds 1/2″ to height.
