REAL 6400 Series

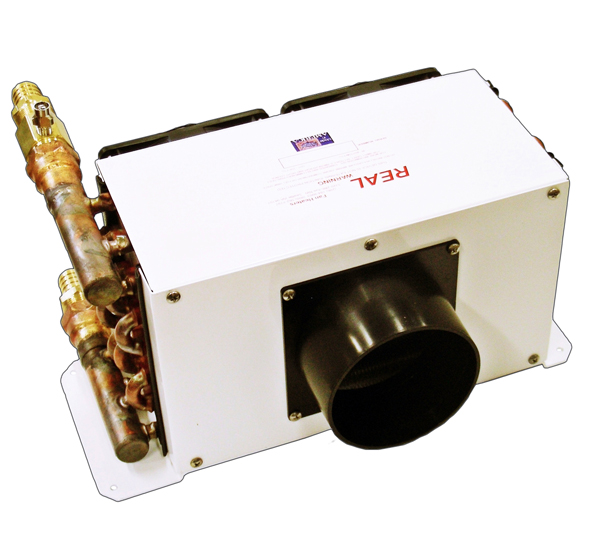

REAL 6414
The REAL 6414 19,250 Btu Marine Hydronic Fan Heater has a 4-inch outlet designed to duct airflow to adjacent spaces or to accommodate tight installations. This kit comes with four feet of 4-inch duct and one 4-inch grille with clamps.

Dimensions: Height* 6-3/4″ x Width 13-3/8″ x Depth* 9″
Amp Draw: .72 @ 12 Volts
Max. BTU: 19,250 btu
Airflow: 206 cfm
Shipping Weight: 11 lbs
*Bleeder fitting adds 2-3/8″ to depth and 1/2″ to height.

Available in 12 or 24 Volts. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.

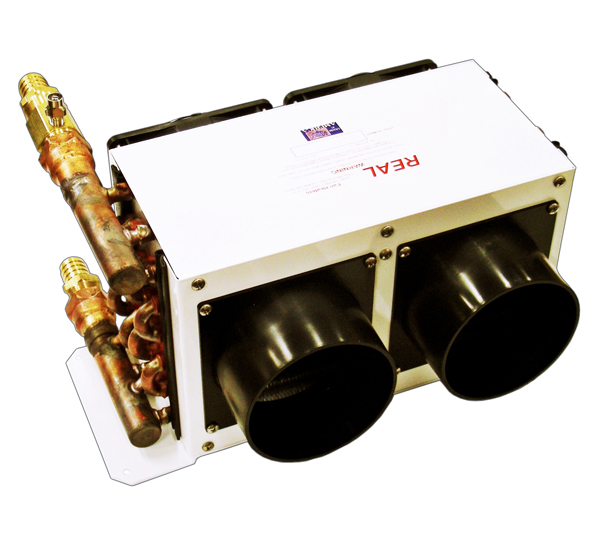

REAL 6424

The REAL 6424 19,250 Btu Marine Hydronic Fan Heater provides two 4 inch outlets designed to split the airflow to separate spaces or to accommodate tight installations. This kit comes with six feet of 4-inch duct and two 4-inch grilles with clamps.

Dimensions: Height* 6-3/4″ x Width 13-3/8″ x Depth* 9″
Amp Draw: .72 @ 12 Volts
Max. BTU: 19,250 btu
Airflow: 206 cfm
Shipping Weight: 12 lbs
*Bleeder fitting adds 2-3/8″ to depth and 1/2″ to height.

Available in 12 or 24 Volts. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.
