REAL 5200 Series

REAL5214LP
REAL 5214-LP
The REAL 5214-LP 15,000 Btu Low Profile Marine Hydronic Defroster / Heater is a 4-inch outlet heater designed to provide a greater airflow to adjacent spaces and to ease space concerns. This kit includes five feet of 4-inch duct and one 4-inch grille with clamps.

Dimensions: Height* 6-11/16″ x Width 9-15/16″ x Depth 11-11/16″
Amp Draw: 4.5 (high) @ 12 Volts
Max. BTU: 15,000 btu
Airflow: 153 cfm (high)
Shipping Weight: 11 lbs
*Bleeder fitting adds 1/2″ to height.

Available in 12 or 24 Volts. Comes with 3-speed switch. An air bleed fitting is included with each unit. 3/4” hose barbs are standard. Other hoses sizes as well as Pex or Wirsbo fittings are available.

REAL5223LP
REAL 5223-LP

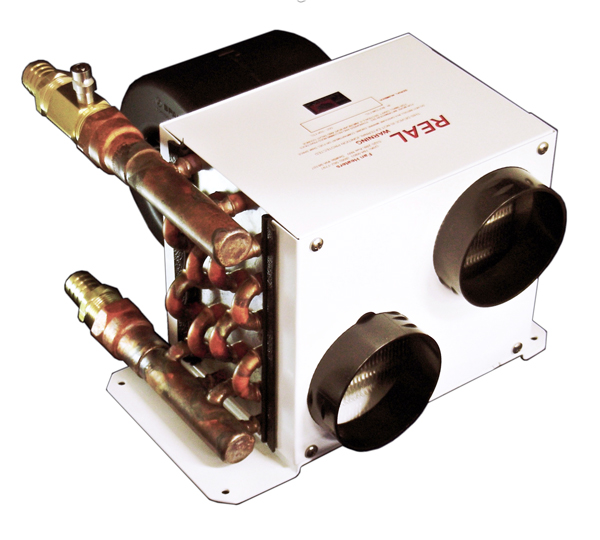

The REAL 5223-LP 15,000 Btu Low Profile Marine Hydronic Defroster / Heater is a dual outlet heater with two 3-inch outlets designed to split the airflow to separate spaces or windows. This kit includes six feet of 3-inch duct and two 3-inch grilles with clamps.

Dimensions: Height* 6-11/16″ x Width 9-15/16″ x Depth 10-1/2″
Amp Draw: 4.5 (high) @ 12 Volts
Max. BTU: 15,000 btu
Airflow: 153 cfm (high)
Shipping Weight: 10 lbs
*Bleeder fitting adds 1/2″ to height.

REAL5242LP
REAL 5242-LP

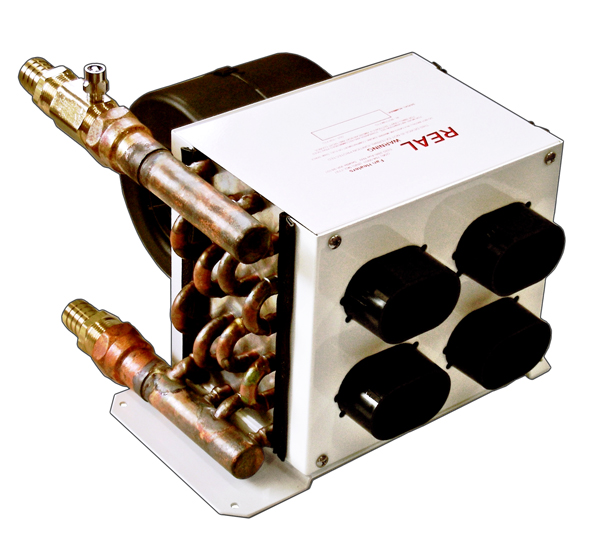

The REAL 5242-LP 15,000 Btu Low Profile Marine Hydronic Defroster / Heater is a quad outlet heater with four 2″ outlets designed to split the airflow to separate spaces or windows. This kit includes 16 feet of 2-inch duct and four 2-inch grilles with clamps.
